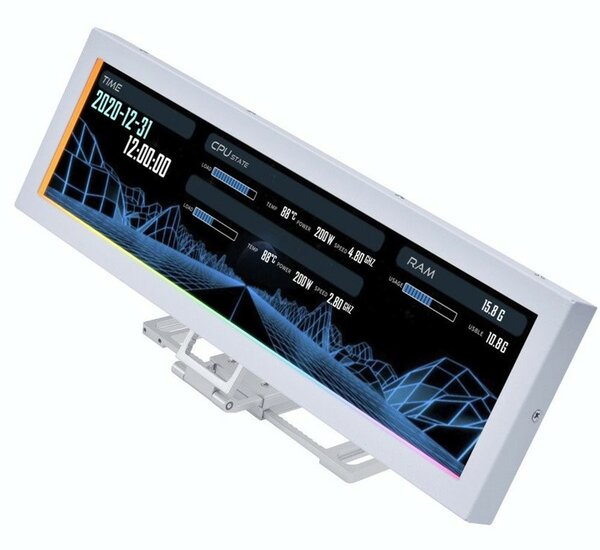

8.8″ Universal Screen (US88v1)
- 8.8″ IPS LCD, 1920×480, 60Hz, 500 nits
- USB Plug & Play, no GPU output required
- Supports L-Connect 3: templates, custom themes, video/image display
- ARGB edge lighting, syncs with system effects
- Multiple mounting options: 120/140mm fan mounts, adhesive, sliding rail with angle adjustment
- Landscape/portrait orientation, multi-screen expansion
<FIGURE class=„image“></FIGURE>
COMPACT FIT, CLEAN LOOK
With a slim 13mm profile and 237mm length, the display fits seamlessly into any build. Its space-efficient design makes it a sleek addition to minimalist or high-performance setups. <FIGURE class=„image“></FIGURE>
FLEXIBLE MOUNTING, PERFECT VIEW
Whether mounted inside or outside the case, the 8.8” Universal Screen offers versatile installation options on fan frames, case panels, or flat surfaces, giving you the flexibility to suit various needs and layouts. <FIGURE class=„image“></FIGURE>
HIGH BRIGHTNESS, CLEAR DISPLAY
The 8.8″ display delivers sharp visuals with a 1920×480 resolution, 60Hz refresh rate, and 500 nits brightness, ensuring clear and vivid presentation of animations, temperature data, or custom images. <FIGURE class=„image“></FIGURE>
USB POWERED,NO GPU NEEDED
The 8.8″ Universal Screen connects via USB, either through a motherboard USB 9-pin header or a rear I/O Type-A port, allowing it to function as a fully independent display without using any of your graphics card’s outputs. This plug-and-play setup offers a clean and flexible way to show hardware stats, custom media, or animated overlays, all without draining GPU resources, while freeing up GPU ports and ensuring greater flexibility in system configuration. <FIGURE class=„image“></FIGURE>
MULTI-SCREEN & FLEXIBLE ORIENTATION
L-Connect 3 supports multiple 8.8″ Universal Screens, giving you the freedom to decorate your build extensively. Each display can be set in either landscape or portrait mode, allowing flexible adaptation to your build layout and viewing preference. <FIGURE class=„image“></FIGURE>
SPECIFICATIONS
<FIGURE class=„table“><TABLE><TBODY><TR><TH>BRACKET DIMENSION </TH><TD>237mm (L)x 73mm (D)x 13mm (H)</TD></TR><TR><TH>LCD TYPE </TH><TD>IPS LCD</TD></TR><TR><TH>SIZE </TH><TD>8.8</TD></TR><TR><TH>REFRESH RATE </TH><TD>60Hz</TD></TR><TR><TH>RESOLUTION </TH><TD>1920×480</TD></TR><TR><TH>SCREEN BRIGHINESS </TH><TD>500nits</TD></TR><TR><TH>RATED VOLTAGE </TH><TD>5v</TD></TR><TR><TH>INPUT POWER </TH><TD>3.8W</TD></TR></TBODY></TABLE></FIGURE>
