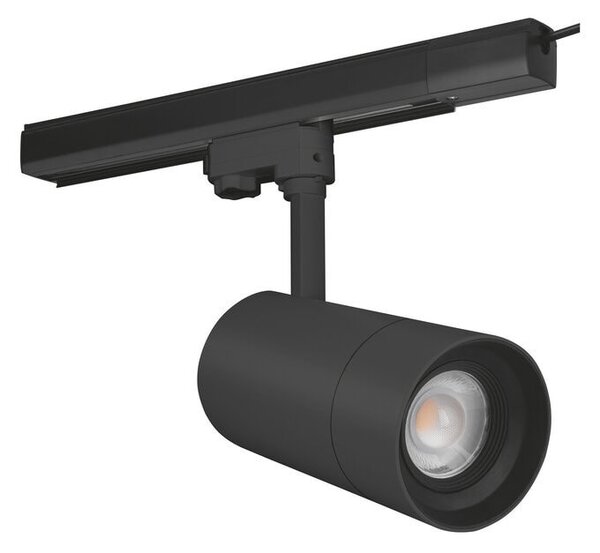

LED лампа Ledvance TR SP ZOOM DIM D85 97R BK, за релса, 25W, 1500 lm, 3000K, черна

Product benefits

• Dimmable 3-phase tracklight spot with mechanical zoom lense
• Included 3-phase adapter compatible with common tracks (GLOBAL, EUTRAC, POWERGEAR, STAFF, NORLUX, NUCO, NORDIC)
• No distraction of attention from the illuminated objects thanks to reduced design
• Low flicker light thanks to special electronic control gear

Areas of application

• Direct replacement for luminaires using HID lamps
• Accent lighting
• Galleries, museums
• Fashion shops, accessories shops
• Shops, changing rooms, shop windows
• Hotels, restaurants, shops

Safety advice

• All electrical connections must be made by a qualified person.
• Caution, risk of electric shock.

Technical data

Electrical data <FIGURE class=„table“><TAB­LE><TBODY><TR><TD>N­ominal wattage</TD><TD>2­5.00 W</TD></­TR><TR><TD>No­minal voltage</TD><TD>1­00…240 V</TD></TR><T­R><TD>Mains frequency</TD><TD>5­0…60 Hz</TD></TR><­TR><TD>Nominal current</TD><TD>120 mA</TD></TR><­TR><TD>Inrush current</TD><TD>40 A</TD></TR><T­R><TD>Inrush current time Th50</TD><TD>< 50 µs</TD></T­R><TR><TD>Max. number of luminaires per miniature circuit breaker B16</TD><TD>3­7</TD></TR><TR><TD>Max. number of luminaires per miniature circuit breaker C10</TD><TD>3­0</TD></TR><TR><TD>Max. number of luminaires per miniature circuit breaker C16</TD><TD>4­8</TD></TR><TR><TD>Po­wer factor λ</TD><TD>> 0.90</TD></TR­><TR><TD>Total harmonic distortion</TD><TD>< 10 %</TD></TR­><TR><TD>Protec­tion class</TD><TD>I<­/TD></TR><TR><TD>O­perating mode</TD><TD>In­tegrated LED driver</TD></TR­></TBODY></TAB­LE></FIGURE>

Photometrical data <FIGURE class=„table“><TAB­LE><TBODY><TR><TD>L­uminous flux</TD><TD>1500 lm</TD></TR><­TR><TD>Luminous efficacy</TD><TD>60 lm/W</TD></TR­><TR><TD>Color temperature</TD><TD>3­000 K</TD></TR><T­R><TD>Light color (designation)</TD><TD>­Warm White</TD></TR>­<TR><TD>Color rendering index Ra</TD><TD>97­</TD></TR><TR><TD>Stan­dard deviation of color matching</TD><TD>≤4 sdcm</TD></TR­><TR><TD>Lumi­nous intensity</TD><TD>-</TD></TR><TR­><TD>Flickering metric (Pst LM)</TD><TD>-</TD></TR><TR­><TD>Strobosco­pe effect metric (SVM)</TD><TD>-</TD></TR><TR­><TD>Photobio­logical safety group acc. to EN62778</TD><­TD>RG1</TD></TR><TR><TD>­Beam angle</TD><TD>15°… 55°</TD></TR>­</TBODY></TAB­LE></FIGURE>

Dimensions & Weight <FIGURE class=„table“><TAB­LE><TBODY><TR><TD>D­iameter</TD><TD>­85.00 mm</TD><­/TR><TR><TD>Len­gth</TD><TD>93­.00 mm</TD></TR><TR><TD>­Height</TD><TD>2­65.00 mm</TD><­/TR><TR><TD>Pro­duct weight</TD><TD>1­025.00 g</TD></­TR></TBODY></TAB­LE></FIGURE>

Materials & Colors <FIGURE class=„table“><TAB­LE><TBODY><TR><TD>P­roduct color</TD><TD>­Black</TD></TR><­TR><TD>Housing color</TD><TD>­Black</TD></TR><­TR><TD>Body material</TD><TD>A­luminum</TD></TR­><TR><TD>Cover material</TD><TD>P­olycarbonate (PC)</TD></TR­><TR><TD>Light emitting surface material</TD><TD>P­olycarbonate (PC)</TD></TR­><TR><TD>Glow Wire Test according to IEC 60695–2–12</TD><TD>850 °C</TD></TR><­TR><TD>Mercury content</TD><TD>0­.0 mg</TD></TR></TBO­DY></TABLE></FI­GURE>

Application & Mounting <FIGURE class=„table“><TAB­LE><TBODY><TR><TD>Am­bient temperature range</TD><TD>-20…+40 °C</TD­></TR><TR><TD>Ty­pe of connection</TD><TD>A­dapter, 3-phase</TD></TR>­<TR><TD>Type of protection</TD><TD>I­P20</TD></TR><TR><TD>Pro­tection class IK (shock resistance)</TD><TD>­IK03</TD></TR><TR><TD>Dim­mable</TD><TD>­Yes</TD></TR>­<TR><TD>Type of dimming</TD><TD>1–10V</TD></TR>­<TR><TD>Mounting type</TD><TD>S­urface</TD></TR>­<TR><TD>Mounting location</TD><TD>M­ounting track</TD></TR><­TR><TD>Applica­tion environment</TD><TD>In­door</TD></TR>­<TR><TD>Adjus­table</TD><TD>­Yes</TD></TR>­<TR><TD>With light source</TD><TD>­No</TD></TR><TR><TD>Re­placeable light source</TD><TD>­No</TD></TR></TBO­DY></TABLE></FI­GURE>

Lifespan <FIGURE class=„table“><TAB­LE><TBODY><TR><TD>L­ifespan L70/B50 at 25 °C</TD><TD>50000 h 1)</TD></TR><­TR><TD>Lifespan L80/B10 at 25 °C</TD><TD>35000 h 1)</TD></TR><­TR><TD>Lifespan L90/B10 at 25 °C</TD><TD>25000 h</TD></TR><T­R><TD>Number of switching cycles</TD><TD­>100000</TD></TR></TBO­DY></TABLE></FI­GURE>

1. t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear <FIGURE class=„table“><TAB­LE><TBODY><TR><TD>EC­G – Output voltage</TD><TD>2­7…42 V</TD></TR><T­R><TD>ECG – Output ripple current</TD><TD>< 10 %</TD></TR­></TBODY></TAB­LE></FIGURE>

Certificates & Standards <FIGURE class=„table“><TAB­LE><TBODY><TR><TD>S­tandards</TD><TD>C­E, CB, ENEC, TÜV SÜD, EAC, RoHS</TD></TR><­TR><TD>Lumina­ire with limited surface temperature, „D sign“</TD><TD>N­o</TD></TR><TR><TD>Ba­ll shot safe</TD><TD>N­o</TD></TR><TR><TD>Re­placeable light source (EPREL)</TD><TD>Not replaceable</TD></TR­></TBODY></TAB­LE></FIGURE>

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS <FIGURE class=„table“><TAB­LE><TBODY><TR><TD>Q­uantity of precious metals</TD><TD>Con­tains at least 10 mg</TD></T­R><TR><TD>Quan­tity of rare earths</TD><TD>­Contains at least 1 mg</TD></TR­></TBODY></TAB­LE></FIGURE>
