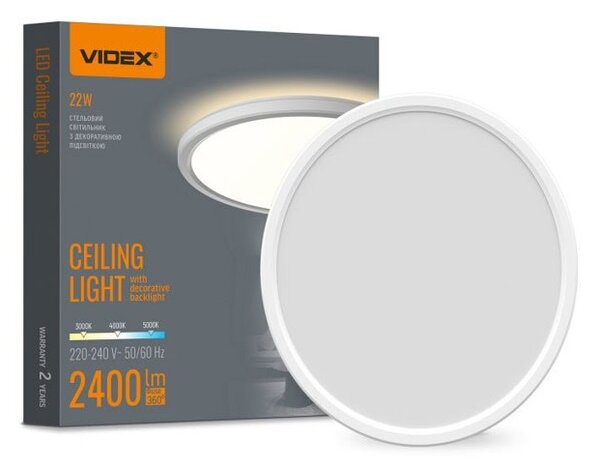

Сходни продукти (4)
Параметри и описание
INSTALLATION AND CONNECTION INSTRUCTIONS
Please read the manual before installation. Installation must be carried out by a qualified specialist. The installation should only be performed with the power supply disconnected. The product must be installed on a flat surface, primarily on the ceiling. Connection should be made using the terminal block included in the package. Before first use, check the correctness of the mechanical mounting and connections. The product should only be used in an electrical network that complies with the energy requirements and quality standards established by law.
Specifications
On-mode power (Pon):
22 W
Useful luminous flux (Φuse):
2400 Lm
Light source or containing product:
Light source
Correlated color temperature:
5000K (neutral white), 4000K (neutral white), 3000K (warm white)
Energy class of the light source:
F
Rated voltage, frequency:
AC 220–240 V, 50/60 Hz
Beam angle:
140°
Place of installation :
Ceiling
Place of application:
indoor, outdoor
Rated current:
136 mA
Displacement factor (cos φ1):
0.7
Color rendering index (CRI):
Ra> 80
Lifetime (L70B50):
30000 h
On/Off cycles:
20000
Housing colour:
White
Input interface:
Terminal block
Useful luminous flux of the light source reference:
in a sphere (360°)
Electric shock protection class:
II
Minimum distance from the illuminated object:
0.5 m
Diffuser material:
Polypropylene (PP)
Ultraviolet radiation:
no
Operating temperature range:
- 20° +40°C
Dimmable:
no
Light source replaceable:
no
Ingress protection:
IP54
Mercury content:
Does not contain
Housing material:
ABS
Height:
293 mm
Width:
293 mm
Depth:
26 mm
In the package:
1 pc.
Outer box:
20 pcs.
Unit nett weight:
580g
