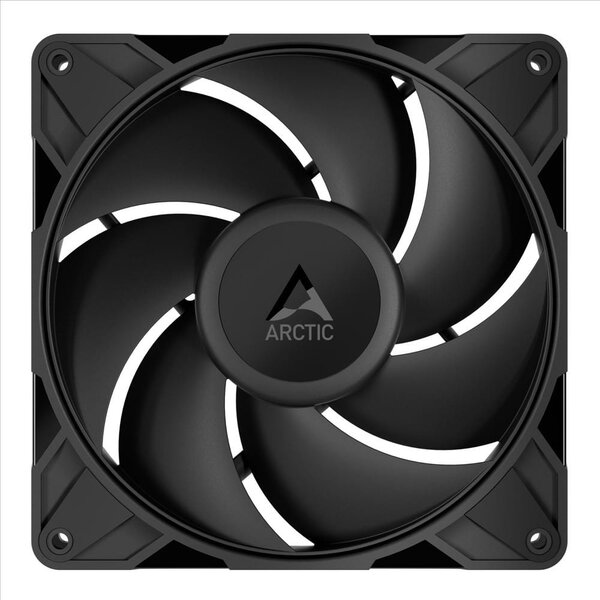

Вентилатор 120mm, Arctic P12 SLIM PWM PST (ACFAN00187A), 4-pin, 2100 rpm
Параметри и описание
Maximum Performance, Redefined
Revised fan blade design for an optimal balance of performance and smooth operation.
More Power – Less Noise
The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) – ideal for quiet, powerful cooling.
Minimum Gap Dimensions for Maximum Efficiency
Enables higher static pressure and maximum airflow efficiency.
Automated Two-Plane Balancing
An automated two-level measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing mass with pinpoint accuracy at two different depth levels.
<FIGURE class=„table“><TABLE><THEAD><TR><TH>Specification </TH><TH>Details </TH></TR></THEAD><TBODY><TR><TD>Operating Ambient Temperature</TD><TD>0–40 °C</TD></TR><TR><TD>Dimensions (L × W × H)</TD><TD>140 × 140 × 27 mm</TD></TR><TR><TD>Net Weight</TD><TD>242 g</TD></TR><TR><TD>Fan Speed</TD><TD>400–2500 rpm, PWM controlled; 0 rpm below 5% PWM</TD></TR><TR><TD>Airflow</TD><TD>110 cfm | 186 m³/h</TD></TR><TR><TD>Static Pressure</TD><TD>5.2 mmH2O</TD></TR><TR><TD>Fan Bearing</TD><TD>Fluid Dynamic Bearing</TD></TR><TR><TD>Typical Voltage</TD><TD>12 V DC</TD></TR><TR><TD>Start Up Voltage</TD><TD>5 V DC</TD></TR><TR><TD>Current</TD><TD>0.35 A</TD></TR><TR><TD>Cable Length</TD><TD>400 mm + 80 mm Daisy-Chain Cable</TD></TR><TR><TD>Connector</TD><TD>4-Pin Fan Plug + 4-Pin Socket</TD></TR></TBODY></TABLE></FIGURE>
