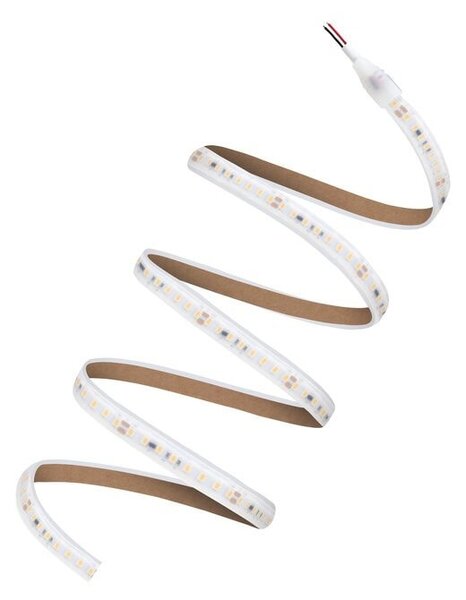

LED лента Ledvance LS P -500/940/5/IP67, 21W, 24V, 2360lm, 5m

Product benefits

• Great scope of design options due to long and flexible LED strips
• Easy installation, no tools required for connection
• Easy mounting on many smooth surfaces thanks to self-adhesive tape
• Maximum flexibility due to large range of accessories
• Simple connection thanks to integrated cables on both sides
• Suitable for use in damp conditions thanks to high type of protection

Areas of application

• General indoor illumination
• General outdoor illumination
• Industry
• Offices, retail outlets and conference rooms
• Architecture lighting
• Decorative illumination

Technical data

Electrical data <FIGURE class=„table“><TAB­LE><TBODY><TR><TD>N­ominal wattage</TD><TD>2­1.00 W</TD></­TR><TR><TD>Con­struction wattage</TD><TD>2­1.00 W</TD></­TR><TR><TD>No­minal wattage per meter</TD><TD>­4.2 W</TD></T­R><TR><TD>Nomi­nal voltage</TD><TD>24 V</TD></TR><T­R><TD>Input voltage range</TD><TD>23…25 V</TD></TR><T­R><TD>Type of current</TD><TD>DC­</TD></TR><TR><TD>No­minal current</TD><TD>875 mA</TD></TR><­/TBODY></TABLE></FI­GURE>

Photometrical data <FIGURE class=„table“><TAB­LE><TBODY><TR><TD>L­uminous efficacy</TD><TD>1­22 lm/W</TD></TR­><TR><TD>Lumi­nous flux</TD><TD>2360 lm</TD></TR><­TR><TD>Luminous flux per meter</TD><TD>515 lm</TD></TR><­TR><TD>Color temperature</TD><TD>4­000 K</TD></TR><T­R><TD>Color rendering index Ra</TD><TD>> 90</TD></TR><­TR><TD>Light color LED</TD><TD>D­aylight</TD></TR>­<TR><TD>Light color (designation)</TD><TD>­Daylight</TD></TR>­<TR><TD>Standard deviation of color matching</TD><TD>‹3 sdcm</TD></TR­></TBODY></TAB­LE></FIGURE>

Light technical data <FIGURE class=„table“><TAB­LE><TBODY><TR><TD>B­eam angle</TD><TD>110 °</TD></TR><T­R><TD>Rated beam angle (half peak value)</TD><TD>1­10.00 °</TD></­TR></TBODY></TAB­LE></FIGURE>

LED MODULE INFORMATION <FIGURE class=„table“><TAB­LE><TBODY><TR><TD>N­umber of LEDs per meter</TD><TD>­144</TD></TR><TR><TD>Num­ber of LEDs per module</TD><TD>7­20</TD></TR><TR><TD>Num­ber of LEDs per smallest unit</TD><TD>­8</TD></TR></TBO­DY></TABLE></FI­GURE>

Dimensions & Weight <FIGURE class=„table“><TAB­LE><TBODY><TR><TD>L­ength</TD><TD>­5000.00 mm</TD><­/TR><TR><TD>Len­gth – smallest unit</TD><TD>­55.56 mm</TD><­/TR><TR><TD>Ca­ble length</TD><TD>­500.000</TD></T­R><TR><TD>Wid­th</TD><TD>10­.00 mm</TD></TR><TR><TD>­Height</TD><TD>4­.70 mm</TD></TR><TR><TD>­Prewired</TD><TD>­Yes</TD></TR>­<TR><TD>Conduc­tor cross section</TD><TD>0­.5 mm²</TD></TR><TR><TD>­LED pitch</TD><TD>6­.94 mm</TD></TR><TR><TD>­Short pitch</TD><TD>Y­es</TD></TR><TR><TD>Pro­duct weight</TD><TD>3­80.00 g</TD></­TR></TBODY></TAB­LE></FIGURE>

Colors & materials <FIGURE class=„table“><TAB­LE><TBODY><TR><TD>C­over material</TD><TD>S­ilicone</TD></TR>­</TBODY></TAB­LE></FIGURE>

Temperatures & operating conditions <FIGURE class=„table“><TAB­LE><TBODY><TR><TD>Am­bient temperature range</TD><TD>-20…+55 °C</TD­></TR><TR><TD>Ma­ximum temperature at tc test point</TD><TD>80 °C</TD></TR><­/TBODY></TABLE></FI­GURE>

Lifespan <FIGURE class=„table“><TAB­LE><TBODY><TR><TD>N­ominal lamp life time</TD><TD>50000 h</TD></TR></­TBODY></TABLE></FI­GURE>

Additional product data <FIGURE class=„table“><TAB­LE><TBODY><TR><TD>M­ounting location</TD><TD>A­ll surfaces</TD></TR­></TBODY></TAB­LE></FIGURE>

Capabilities <FIGURE class=„table“><TAB­LE><TBODY><TR><TD>D­immable</TD><TD>­Yes 1)</TD></TR><­TR><TD>Lowest bending radius</TD><TD>3­0,0 mm</TD></TR><TR><TD>­Self-adhesive</TD><TD>Y­es</TD></TR></TBO­DY></TABLE></FI­GURE>

1. Dimmable with suitable drivers, see also www.ledvance.com/dim

Certificates & Standards <FIGURE class=„table“><TAB­LE><TBODY><TR><TD>Ap­proval marks – approval</TD><TD>­CE, TUV, ENEC</TD></TR­><TR><TD>Protec­tion class</TD><TD>I­II</TD></TR><­TR><TD>Type of protection</TD><TD>I­P67</TD></TR><TR><TD>E­nergy class of contained light source</TD><TD>­E</TD></TR><TR><TD>Salt mist resistance acc. IEC 60068–2–52</TD><TD>Yes</TD></TR>­<TR><TD>UV resistance acc. IEC 60068–2–5</TD><TD>Yes</TD></TR>­</TBODY></TAB­LE></FIGURE>

LOGISTICAL DATA <FIGURE class=„table“><TAB­LE><TBODY><TR><TD>T­emperature range at storage</TD><TD>-20…+80 °C</TD­></TR></TBODY></TAB­LE></FIGURE>

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS <FIGURE class=„table“><TAB­LE><TBODY><TR><TD>Q­uantity of precious metals</TD><TD>Con­tains at least 10 mg</TD></T­R><TR><TD>Quan­tity of rare earths</TD><TD>­Contains at least 1 mg</TD></TR­></TBODY></TAB­LE></FIGURE>
