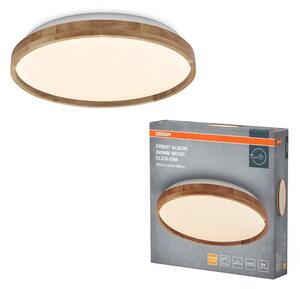

Сходни продукти (1)

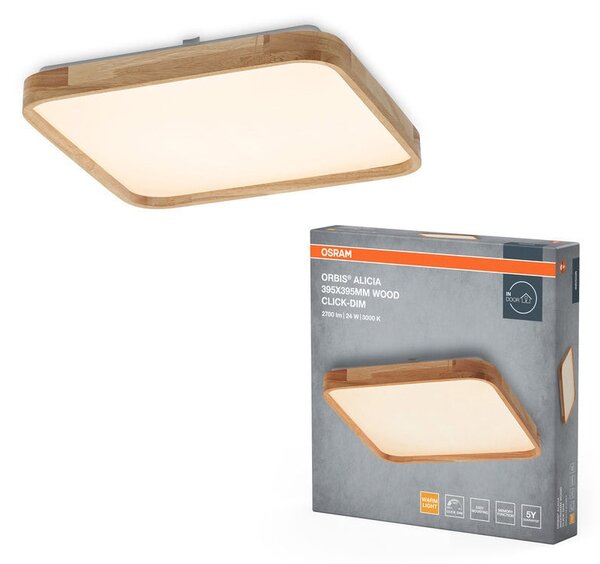

Параметри и описание
Important: All electrical connections must be made by a qualified person with the power supply disconnected !
Product benefits
Stylish and modern design
Easy to install and use
Long lifetime thanks to LED technology
Areas of application
Indoor
Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
Type of protection: IP20
Lifetime up to 30,000 h
Click-DIM version: dimmable in three steps by repeated switching
Color temperature: 3,000 K (Warm White)
Housing material: real wood and metal
Safety advice
Luminaire must be disconnected from mains during installation, maintenance and cover removal
Check wall-ceiling for suitability. If uncertain, seek professional advice.
Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
All electrical connections must be made by a qualified person.
Caution, risk of electric shock.
Specifications
Electrical data
Nominal wattage24.00 W
Nominal voltage220…240 V
Mains frequency50…60 Hz
Nominal current185.000 mA
Inrush current time Th505.79 µs
Max. number of luminaires per miniature circuit breaker B1669
Max. number of luminaires per miniature circuit breaker C1043
Max. number of luminaires per miniature circuit breaker C1669
Power factor λ> 0.5
Total harmonic distortion< 15 %
Protection classI
Operating modeExternal LED driver
Photometrical data
Luminous flux1600 lm
Total luminous flux of contained light sources2700 lm
Luminous efficacy66 lm/W
Color temperature3000 K
Light color (designation)Warm White
Color rendering index Ra≥80
Standard deviation of color matching≤6 sdcm
Photobiological safety group acc. to EN62778RG0
Photobiological safety group acc. to EN62471RG0
Beam angle120 °
Dimensions & Weight
Length395.00 mm
Height60.00 mm
Width395.00 mm
Product weight1100.00 g
Materials & Colors
Product colorWood decor
Housing colorWood decor
Body materialMetal|wood
Cover materialPlastic
Glow Wire Test according to IEC 60695–2–12650 °C
Application & Mounting
Ambient temperature range-20…+40 °C
Temperature range at storage-20…+80 °C
Type of connectionTerminal, 3-Pole (L, N, PE)
Type of protectionIP20
Protection class IK (shock resistance)IK03
DimmableYes
Type of dimming3 DIM
Mounting typeSurface
Application environmentIndoor
With light sourceYes
Replaceable light sourceNo
Lifespan
Lifespan L70/B50 at 25 °C50000 h 1)
Number of switching cycles25000
- t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
StandardsCE; UKCA
Luminaire with limited surface temperature, "D sign"No
Ball shot safeNo
Replaceable light source (EPREL)Not replaceable
