Параметри и описание

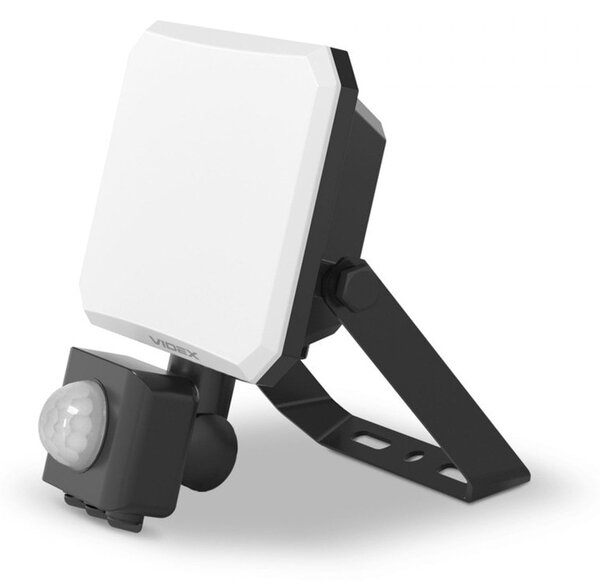

The VIDEX LED floodlight is a light source in a sealed aluminum alloy housing and a polycarbonate diffuser. It has an ingress protection class IP65 and protection against mechanical impacts IK07 and is excellently resistant to moisture, rain, snow and other environmental conditions.
VIDEX floodlights feature LEDs with a color temperature of 5000K, which is optimal in terms of shade between warm white and cool white.
Specifications
On-mode power (Pon):
20 W
Luminous flux of the luminaire:
1900 Lm
Useful luminous flux of the light source (Φuse):
1600 Lm
Correlated color temperature:
5000K (neutral white)
Energy class of the light source:
F
Peak luminous intensity:
700 cd
Rated voltage, frequency:
AC 220–240 V, 50/60 Hz
Beam angle:
110°
Vertical adjustment range:
180°
Place of application:
outdoor
Cable length:
20 cm
Rated current:
100 mA
Power factor (PF):
0.9
Color rendering index (CRI):
Ra> 80
Lifetime:
30000 h
On/Off cycles:
20000
Housing colour:
Black
Impact protection:
IK07
Input interface:
Free wire ends
Useful luminous flux of the light source reference:
in a wide cone (120°)
Electric shock protection class:
I
Minimum distance from the illuminated object:
0.5 m
Diffuser material:
PC
Diffuser type:
symmetric
Ultraviolet radiation:
no
Motion sensor:
yes
Sensor type:
PIR
Sensor vertical adjustment range:
180°
Sensor horizontal adjustment range:
300°
Sensor detection angle:
120°
Sensor time delay:
10 s – 7 min
Sensor detection distance:
2 – 8 m
Sensor light threshold:
10–2000 Lx
Operating temperature range:
–20° +40°C
Dimmable:
no
Control gear replaceable:
no
Light source replaceable:
no
Mercury content:
Does not contain
Ingress protection:
IP65
Housing material:
Aluminum alloy
Height:
135 mm
Width:
101 mm
Depth:
52 mm
