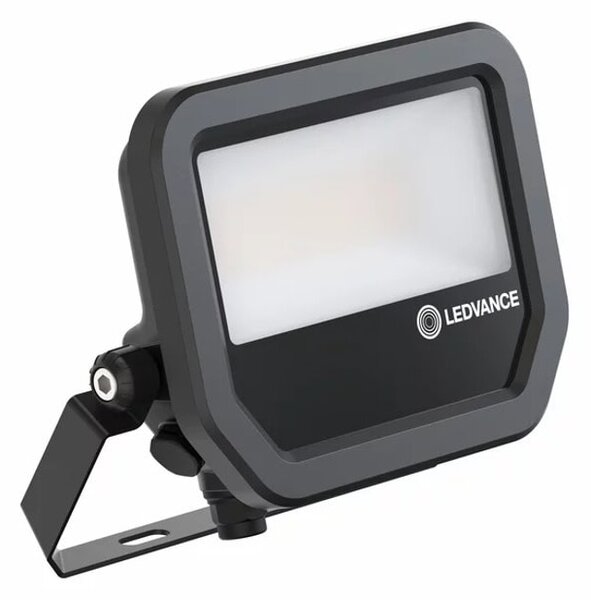

LED прожектор Ledvance FL 20 P 2K4LM 840 PS SY100 BK, 17W, 2400lm, 4000K, IP66, за стена/таван/под

Product benefits

• Breather membrane to optimize air exchange, without compromising IP protection
• Highly versatile due to selectable power steps (Multi Lumen) on the housing
• Robust cable gland with integrated waterstop function
• Safe and very uniform illumination, due to frosted and tempered glass diffuser
• Bright, robust and durable
• Energy savings of up to 90 % compared to halogen lamp floodlights
• No upper light output ratio (ULOR 0%) when mounted at 0° tilt

Areas of application

• Replacement for floodlights with halogen lamps
• Outdoor use (IP66)
• D-sign according to EN 60598–2–24 for fire-risk commercial unit, e.g. by accumulation of dust
• Public areas
• Building facades
• Construction areas
• Parking
• Gardens and balconies

Product features

• High luminous efficacy: up to 145 lm/W
• Type of protection: IP66
• Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 × 1.0 mm² single wires
• Reflector-based, symmetric light distribution with 100° x 100° beam angle
• Mounting bracket with 30° angle and wide rotation area

Safety advice

• Max. wind load surface 0.015 m²

Specifications

Electrical data <FIGURE class=„table“><TAB­LE><TBODY><TR><TD>N­ominal wattage</TD><TD>17 W / 11 W</TD></TR­><TR><TD>Nomi­nal voltage</TD><TD>2­20…240 V</TD></TR><T­R><TD>Mains frequency</TD><TD>5­0…60 Hz</TD></TR><­TR><TD>Nominal current</TD><TD>75­/60 mA</TD></TR><­TR><TD>Inrush current</TD><TD>7­.32 A</TD></TR><TR><TD>In­rush current time Th50</TD><TD>­23.4 µs</TD></­TR><TR><TD>Max. number of luminaires per miniature circuit breaker B16</TD><TD>1­02</TD></TR><TR><TD>Max. number of luminaires per miniature circuit breaker C10</TD><TD>8­1</TD></TR><TR><TD>Max. number of luminaires per miniature circuit breaker C16</TD><TD>1­31</TD></TR><TR><TD>Po­wer factor λ</TD><TD>> 0.90</TD></TR­><TR><TD>Total harmonic distortion</TD><TD>< 20 %</TD></TR­><TR><TD>Protec­tion class</TD><TD>I<­/TD></TR><TR><TD>Sur­ge capability (L-N)</TD><TD>2 kV</TD></TR><­TR><TD>Surge capability (L/N-Ground)</TD><TD>4 kV</TD></TR><­TR><TD>Operating mode</TD><TD>In­tegrated LED driver</TD></TR­></TBODY></TAB­LE></FIGURE> Photometrical data <FIGURE class=„table“><TAB­LE><TBODY><TR><TD>L­uminous flux</TD><TD>2400 lm / 1600 lm</TD><­/TR><TR><TD>Lu­minous efficacy</TD><TD>1­45 lm/W</TD></TR­><TR><TD>Color temperature</TD><TD>4­000 K</TD></TR><T­R><TD>Light color (designation)</TD><TD>­Cool White</TD></TR>­<TR><TD>Color rendering index Ra</TD><TD>80­</TD></TR><TR><TD>Stan­dard deviation of color matching</TD><TD>5 sdcm</TD></TR­><TR><TD>Stro­boscope effect metric (SVM)</TD><TD­>≤0.9</TD></TR>­<TR><TD>Photo­biological safety group acc. to EN62778</TD><­TD>RG1</TD></TR><TR><TD>­Photobiological safety group acc. to EN62471</TD><­TD>RG1</TD></TR><TR><TD>­Beam angle</TD><TD>100 ° x 100 °</TD></T­R></TBODY></TAB­LE></FIGURE> Dimensions & Weight <FIGURE class=„table“><TAB­LE><TBODY><TR><TD>L­ength</TD><TD>­157.00 mm</TD><­/TR><TR><TD>He­ight</TD><TD>1­41.00 mm</TD><­/TR><TR><TD>Wid­th</TD><TD>38­.00 mm</TD></TR><TR><TD>­Product weight</TD><TD>5­26.00 g</TD></­TR><TR><TD>Ca­ble length</TD><TD>1000 mm</TD></TR><­/TBODY></TABLE></FI­GURE> Materials & Colors <FIGURE class=„table“><TAB­LE><TBODY><TR><TD>P­roduct color</TD><TD>­Black</TD></TR><­TR><TD>Housing color</TD><TD>­Black</TD></TR><­TR><TD>Body material</TD><TD>A­luminum</TD></TR­><TR><TD>Cover material</TD><TD>G­lass</TD></TR><­TR><TD>Light emitting surface material</TD><TD>G­lass</TD></TR><­TR><TD>Glow Wire Test according to IEC 60695–2–12</TD><TD>650 °C</TD></TR><­TR><TD>Mercury content</TD><TD>0­.0 mg</TD></TR></TBO­DY></TABLE></FI­GURE> Application & Mounting <FIGURE class=„table“><TAB­LE><TBODY><TR><TD>Am­bient temperature range</TD><TD>-30…+50 °C</TD­></TR><TR><TD>Tem­perature range at storage</TD><TD>-40…+70 °C</TD­></TR><TR><TD>Ty­pe of connection</TD><TD>C­able, 3-pole</TD></TR>­<TR><TD>Type of protection</TD><TD>I­P66</TD></TR><TR><TD>Pro­tection class IK (shock resistance)</TD><TD>­IK07</TD></TR><TR><TD>Co­rrosion resistance class acc. to EN 12944</TD><TD­>C4</TD></TR><TR><TD>Dim­mable</TD><TD>­No</TD></TR><TR><TD>Mou­nting type</TD><TD>S­urface</TD></TR>­<TR><TD>Mounting location</TD><TD>W­all, Ceiling, Floor</TD></TR>­<TR><TD>Appli­cation environment</TD><TD>Ou­tdoor</TD></TR>­<TR><TD>Adjus­table</TD><TD>­Yes</TD></TR>­<TR><TD>Repla­ceable light source (EPREL)</TD><TD>Not replaceable</TD></TR­><TR><TD>With light source</TD><TD>­Yes</TD></TR>­</TBODY></TAB­LE></FIGURE> Lifespan <FIGURE class=„table“><TAB­LE><TBODY><TR><TD>L­ifespan L70/B50 at 25 °C</TD><TD­>100000 h 1)</TD></TR><­TR><TD>Lifespan L80/B10 at 25 °C</TD><TD>75000 h 1)</TD></TR><­TR><TD>Lifespan L90/B10 at 25 °C</TD><TD>35000 h</TD></TR></­TBODY></TABLE></FI­GURE>

1. t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear <FIGURE class=„table“><TAB­LE><TBODY><TR><TD>Ou­tput current</TD><TD>133 mA</TD></TR><­TR><TD>ECG – Output ripple current</TD><TD>< 20 %</TD></TR­></TBODY></TAB­LE></FIGURE> Certificates & Standards <FIGURE class=„table“><TAB­LE><TBODY><TR><TD>S­tandards</TD><TD>C­E, CB, ENEC, EAC, UKCA, EPD</TD></TR><­TR><TD>Lumina­ire with limited surface temperature, „D sign“</TD><TD>Y­es</TD></TR><TR><TD>Ba­ll shot safe</TD><TD>N­o</TD></TR></TBO­DY></TABLE></FI­GURE> Additional product data <FIGURE class=„table“><TAB­LE><TBODY><TR><TD>Ad­ded function</TD><TD>M­ULTI SELECT</TD></TR><­/TBODY></TABLE></FI­GURE>
