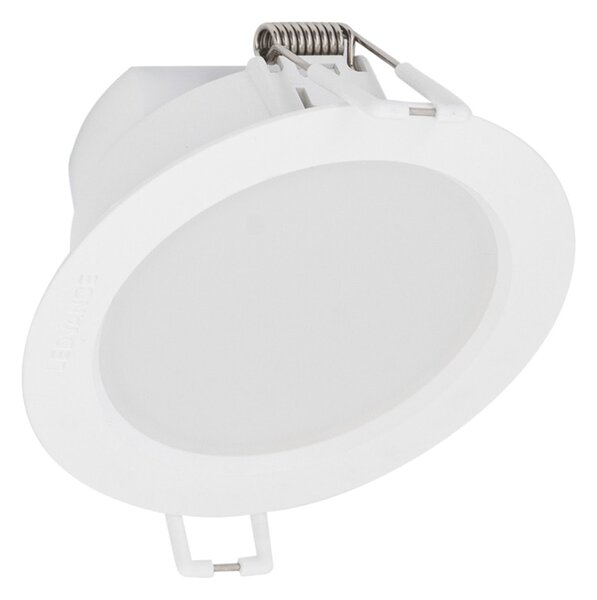

LED лампа Ledvance DN 90 4W 865 WT, за вграждане, 4W, 240V, 400lm, 6500K, бяла

Product benefits

• High luminous efficacy
• Very homogenous light
• Simple installation thanks to integrated driver

Areas of application

• Direct replacement for luminaires with fluorescent lamps
• General illumination
• Public areas
• Stairways
• Corridors
• Shops
• Bathrooms

Product features

• Type of protection: IP44
• Luminous efficacy: 100 lm/W

Technical data

Electrical data

<TABLE border=„2“>

<TBODY>

<TR>

<TD>Nominal wattage</TD>

<TD>4.00 W</TD>

</TR>

<TR>

<TD>Nominal voltage</TD>

<TD>220…240 V</TD>

</TR>

<TR>

<TD>Mains frequency</TD>

<TD>50…60 Hz</TD>

</TR>

<TR>

<TD>Nominal current</TD>

<TD>30.000 mA</TD>

</TR>

<TR>

<TD>Inrush current</TD>

<TD>4.4 A</TD>

</TR>

<TR>

<TD>Inrush current time T<SUB>h50</SU­B></TD>

<TD>250 µs</TD>

</TR>

<TR>

<TD>Max. number of luminaires per miniature circuit breaker B16</TD>

<TD>373</TD>

</TR>

<TR>

<TD>Max. number of luminaires per miniature circuit breaker C10</TD>

<TD>200</TD>

</TR>

<TR>

<TD>Max. number of luminaires per miniature circuit breaker C16</TD>

<TD>320</TD>

</TR>

<TR>

<TD>Power factor λ</TD>

<TD>0.50</TD>

</TR>

<TR>

<TD>Total harmonic distortion</TD>

<TD>< 80 %</TD>

</TR>

<TR>

<TD>Protection class</TD>

<TD>II</TD>

</TR>

<TR>

<TD>Operating mode</TD>

<TD>Integrated LED driver</TD>

</TR>

</TBODY>

</TABLE>

Photometrical data

<TABLE border=„2“>

<TBODY>

<TR>

<TD>Luminous flux</TD>

<TD>400 lm</TD>

</TR>

<TR>

<TD>Luminous efficacy</TD>

<TD>100 lm/W</TD>

</TR>

<TR>

<TD>Color temperature</TD>

<TD>6500 K</TD>

</TR>

<TR>

<TD>Light color (designation)</TD>

<TD>Cool Daylight</TD>

</TR>

<TR>

<TD>Color rendering index Ra</TD>

<TD>> 80</TD>

</TR>

<TR>

<TD>Standard deviation of color matching</TD>

<TD>< 6 sdcm</TD>

</TR>

<TR>

<TD>Low flicker</TD>

<TD>Yes</TD>

</TR>

<TR>

<TD>Photobiological safety group acc. to EN62778</TD>

<TD>RG0</TD>

</TR>

<TR>

<TD>Photobiological safety group acc. to EN62471</TD>

<TD>RG0</TD>

</TR>

<TR>

<TD>Beam angle</TD>

<TD>100 °</TD>

</TR>

</TBODY>

</TABLE>

Dimensions

<TABLE border=„2“>

<TBODY>

<TR>

<TD>Diameter</TD>

<TD>90.00 mm</TD>

</TR>

<TR>

<TD>Height</TD>

<TD>42.00 mm</TD>

</TR>

</TBODY>

</TABLE>

Materials & Colors

<TABLE border=„2“>

<TBODY>

<TR>

<TD>Product color</TD>

<TD>White</TD>

</TR>

<TR>

<TD>Housing color</TD>

<TD>White</TD>

</TR>

<TR>

<TD>Body material</TD>

<TD>Polycarbonate (PC)</TD>

</TR>

<TR>

<TD>Cover material</TD>

<TD>Polycarbonate (PC)</TD>

</TR>

<TR>

<TD>Light emitting surface material</TD>

<TD>Polycarbonate (PC)</TD>

</TR>

<TR>

<TD>Glow Wire Test according to IEC 60695–2–12</TD>

<TD>650 °C</TD>

</TR>

<TR>

<TD>Mercury content</TD>

<TD>0.0 mg</TD>

</TR>

</TBODY>

</TABLE>

Application & Mounting

<TABLE border=„2“>

<TBODY>

<TR>

<TD>Ambient temperature range</TD>

<TD>-20…+40 °C</TD>

</TR>

<TR>

<TD>Temperature range at storage</TD>

<TD>-20…+80 °C</TD>

</TR>

<TR>

<TD>Type of connection</TD>

<TD>Cable, 2-pole</TD>

</TR>

<TR>

<TD>Type of protection</TD>

<TD>IP44</TD>

</TR>

<TR>

<TD>Protection class IK (shock resistance)</TD>

<TD>IK03</TD>

</TR>

<TR>

<TD>Dimmable</TD>

<TD>No</TD>

</TR>

<TR>

<TD>Mounting type</TD>

<TD>Recessed</TD>

</TR>

<TR>

<TD>Mounting location</TD>

<TD>Ceiling</TD>

</TR>

<TR>

<TD>Application environment</TD>

<TD>Indoor</TD>

</TR>

<TR>

<TD>Mounting diameter</TD>

<TD>75 mm</TD>

</TR>

<TR>

<TD>Mounting depth</TD>

<TD>40 mm</TD>

</TR>

<TR>

<TD>Adjustable</TD>

<TD>No</TD>

</TR>

<TR>

<TD>LED module replaceable</TD>

<TD>Not replaceable</TD>

</TR>

<TR>

<TD>With light source</TD>

<TD>Yes</TD>

</TR>

</TBODY>

</TABLE>

Lifespan

<TABLE border=„2“>

<TBODY>

<TR>

<TD>Lifespan L70/B50 at 25 °C</TD>

<TD>20000 h</TD>

</TR>

<TR>

<TD>Lifespan L80/B10 at 25 °C</TD>

<TD>18000 h</TD>

</TR>

<TR>

<TD>Lifespan L90/B10 at 25 °C</TD>

<TD>15000 h</TD>

</TR>

<TR>

<TD>Number of switching cycles</TD>

<TD>100000</TD>

</TR>

</TBODY>

</TABLE>

Control gear

<TABLE border=„2“>

<TBODY>

<TR>

<TD>Output current</TD>

<TD>66 mA</TD>

</TR>

<TR>

<TD>ECG – Output ripple current</TD>

<TD>< 5 %</TD>

</TR>

</TBODY>

</TABLE>

Certificates & Standards

<TABLE border=„2“>

<TBODY>

<TR>

<TD>Standards</TD>

<TD>CE, EMC, ROHS 2.0, REACH</TD>

</TR>

<TR>

<TD>Luminaire with limited surface temperature, „D sign“</TD>

<TD>No</TD>

</TR>

<TR>

<TD>Ball shot safe</TD>

<TD>No</TD>

</TR>

</TBODY>

</TABLE>
