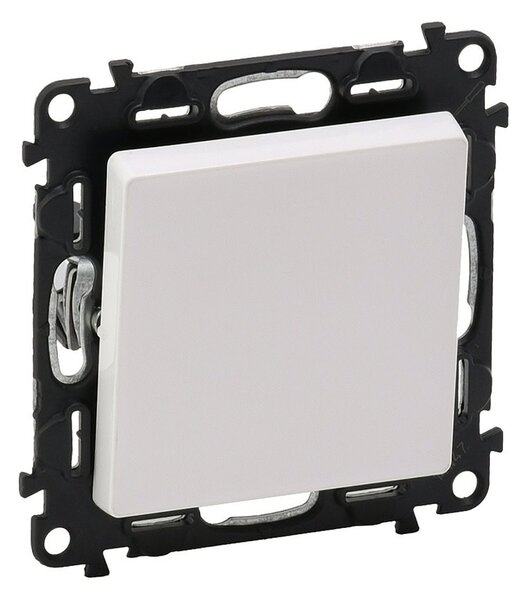

Valena Life – switches with cover plate – Valena In’Matic mechanisms supplied with cover plates and support frames – To be equipped with plates – Supplied with mounted dust protection transparent shield – After clipping in the rocker, all LED lamps light up blue – Flowpack packaging: robust protection to ensure optimum operation
Switches 10 AX – 250 V~Two-way switches – Automatic terminals – White
Technical characteristics
Wiring system
Two-way switch
Method of operation
Rocker/button
Assembly arrangement
Basic element with central cover plate
Push button switch
No
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Mounting with claw and screw
With mounting plate
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Antimicrobial treatment
No
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Colour of switch operator
White
Label space/information surface
No
Lighting
No
Function lighting
Other
Type of lighting
Other
Suitable for degree of protection (IP)
IP20
degree of impact strength (IK)
IK04
Nominal voltage
250 V
Rated current
10 A
Switching current for fluorescent lamps
10 AX
Monitoring contact
No
Connection type
Other
Heating switch
No
Washing machine switch
No
Device width
74.7 mm
Device height
74.7 mm
Device depth
41 mm
Built-in depth
27.5 mm
Min. depth of built-in installation box
30 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Operating / setting temperature
- 5–40 °C
Storage temperature
- 5–40 °C
Voltage type
AC
Frequency
50–60 Hz
Cable section
2.5–2.5 mm²
