Параметри и описание

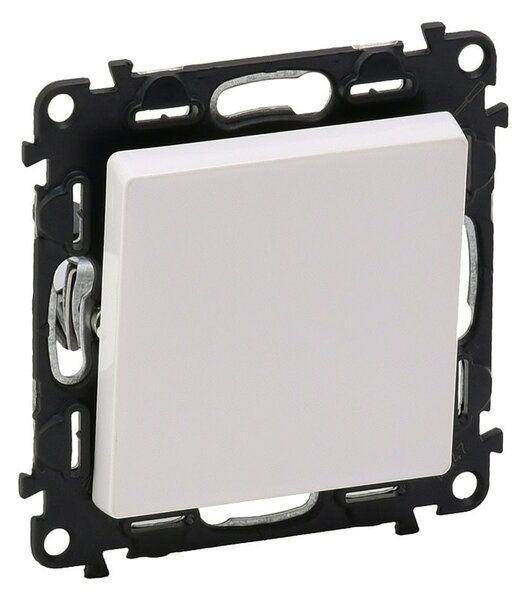

Valena Life – push-buttons with cover plate – Valena In’Matic mechanisms supplied with cover plates and support frames – To be equipped with plates – Supplied with mounted dust protection transparent shield – After clipping in the rocker, all LED lamps light up blue – Flowpack packaging: robust protection to ensure optimum operation
Push-buttons 6 A – 250 V~Changeover push-buttons – Automatic terminals – White
Technical characteristics
Assembly arrangement
Basic element with central cover plate
Method of operation
Rocker
Number of contacts as normally closed contact
1
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
Contactless type
No
Number of modules (module system)
2
Number of poles
2
Nominal voltage
250 V
With lighting
No
With light source
No
With complemantary luminous signal
No
Feedback-signal contact
No
Connection type
Push-in clamp
Mounting method
Flush-mounted
Type of fastening
Mounting with claw and screw
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Antimicrobial treatment
No
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Transparent
No
Label space/information surface
No
Imprint
None
Suitable for degree of protection (IP)
IP20
Degree of impact strength (IK)
IK04
Device width
74.7 mm
Device height
74.7 mm
Device depth
41.5 mm
Min. depth of built-in installation box
40 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Built-in depth
27.5 mm
Operating / setting temperature
- 5–40 °C
Storage temperature
- 5–40 °C
Voltage type
AC
Frequency
50–60 Hz
Cable section
2.5–2.5 mm²
