Параметри и описание

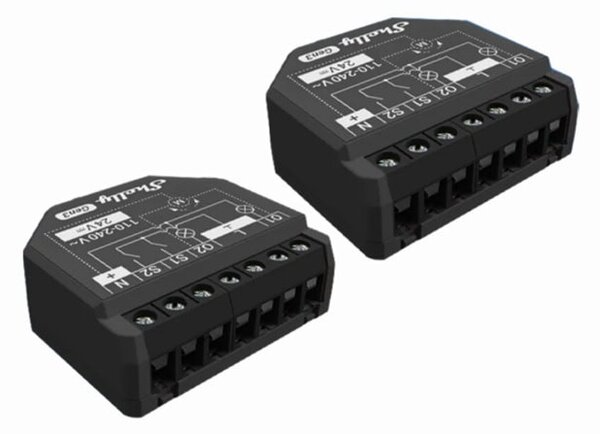

//Shelly 2PM Gen3 //
<FIGURE class=„table“><TABLE><TBODY><TR><TD> Automated Bedroom Curtains or Shutters
Set Shelly 2PM Gen3 to open your bedroom curtains or shutters at a specific time each morning using “Schedules”. Wake up naturally with gradual light as the curtains open to your desired position, starting your day with ease. </TD><TD><FIGURE class=„image“></FIGURE></TD></TR><TR><TD> Control Two Lights with One Device
Shelly 2PM Gen3 lets you control and monitor two different lights on the same phase using a single device. Each light's power consumption is tracked separately, making your lighting setup more efficient. Use the manual switch, app, preferred home automation system, or your voice! </TD><TD><FIGURE class=„image“></FIGURE></TD></TR><TR><TD> Energy Management
Take charge of your energy usage with the power metering feature on each channel. Monitor and analyze the power consumption of connected devices in real-time, and use this data to make informed decisions to reduce energy costs. </TD><TD><FIGURE class=„image“></FIGURE></TD></TR><TR><TD> Smart Blinds
Integrate Shelly 2PM Gen3 with your blinds for an energy-efficient home. Automatically adjust the blinds based on the time of day or the weather conditions. For instance, close the blinds during the hottest part of the day to keep your home cool, and open them in the morning to let in natural light and reduce the need for artificial lighting. </TD><TD><FIGURE class=„image“></FIGURE></TD></TR></TBODY></TABLE></FIGURE>
One Device, Different possibilities
2-Channel Smart Switch
Automate your lights and track their real-time power usage.
Cover (Roller) Control
Automate and control the positioning of roller shutters, curtains, blinds, awnings, gates, pool covers, and other bi-directional AC motors.
Wi-Fi Operated
Connect Shelly 2PM Gen3 to your Wi-Fi network. No HUB required!
Bluetooth
Add devices quickly and easily via Bluetooth connection, using Shelly Cloud App.
Power monitoring
Two integrated precise power meters allow you to monitor the consumption for each channel.
Slats angle control
Use with your venetian blinds and control the tilt position (angle) of slats to adjust the amount of light in a room.
Smart scenes
Set custom scenes by combining Shelly 1 Gen3 with your other Shelly devices.
Smart schedules
Set custom schedules based on your daily agenda or follow the sunrise/sunset and control your lighting accordingly.
Specifications Environmental <FIGURE class=„table“><TABLE><TBODY><TR><TD colspan=„1“ rowspan=„1“>Ambient working temperature:</TD><TD colspan=„1“ rowspan=„1“>-20°C to 40°C / –5°F to 105°F</TD></TR><TR><TD colspan=„1“ rowspan=„1“>Humidity:</TD><TD colspan=„1“ rowspan=„1“>30% to 70% RH</TD></TR><TR><TD colspan=„1“ rowspan=„1“>Max. altitude:</TD><TD colspan=„1“ rowspan=„1“>2000 m / 6562 ft</TD></TR></TBODY></TABLE></FIGURE><FIGURE class=„table“><TABLE><TBODY><TR><TD colspan=„1“ rowspan=„1“>Screw terminals max torque:</TD><TD colspan=„1“ rowspan=„1“>0.4 Nm / 3.5 lbin</TD></TR><TR><TD colspan=„1“ rowspan=„1“>Conductor cross section:</TD><TD colspan=„1“ rowspan=„1“>0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules)</TD></TR><TR><TD colspan=„1“ rowspan=„1“>Conductor stripped length:</TD><TD colspan=„1“ rowspan=„1“>6 to 7 mm / 0.24 to 0.28 in</TD></TR><TR><TD colspan=„1“ rowspan=„1“>Mounting:</TD><TD colspan=„1“ rowspan=„1“>Wall box</TD></TR><TR><TD colspan=„1“ rowspan=„1“>Shell material:</TD><TD colspan=„1“ rowspan=„1“>Plastic</TD></TR></TBODY></TABLE></FIGURE>
Electrical <FIGURE class=„table“><TABLE><TBODY><TR><TD colspan=„1“ rowspan=„1“>Power supply:</TD><TD colspan=„1“ rowspan=„1“>110 – 240 V~ / 24 V⎓ ±10%</TD></TR><TR><TD colspan=„1“ rowspan=„1“>Power consumption:</TD><TD colspan=„1“ rowspan=„1“>< 1.4 W</TD></TR><TR><TD colspan=„1“ rowspan=„1“>External protection:</TD><TD colspan=„1“ rowspan=„1“>Tripping characteristic B or C,
16A max. rated current,
min. 6 kA interrupting rating,
energy limiting class 3</TD></TR></TBODY></TABLE></FIGURE>
Output circuits ratings <FIGURE class=„table“><TABLE><TBODY><TR><TD colspan=„1“ rowspan=„1“>Max. switching voltage:</TD><TD colspan=„1“ rowspan=„1“>
- 240 V~
- 30 V⎓
</TD></TR><TR><TD colspan=„1“ rowspan=„1“>Max. switching current AC:</TD><TD colspan=„1“ rowspan=„1“>10 A (per channel), 16 A (total), 18 A (total peak)</TD></TR><TR><TD colspan=„1“ rowspan=„1“>Max. switching current DC:</TD><TD colspan=„1“ rowspan=„1“>10 A</TD></TR></TBODY></TABLE></FIGURE>
Sensors, meters <FIGURE class=„table“><TABLE><TBODY><TR><TD colspan=„1“ rowspan=„1“>Voltmeter (AC):</TD><TD colspan=„1“ rowspan=„1“>Yes</TD></TR><TR><TD colspan=„1“ rowspan=„1“>Ammeter (AC):</TD><TD colspan=„1“ rowspan=„1“>Yes</TD></TR><TR><TD colspan=„1“ rowspan=„1“>Internal-temperature sensor:</TD><TD colspan=„1“ rowspan=„1“>Yes</TD></TR></TBODY></TABLE></FIGURE>
Radio Wi-Fi <FIGURE class=„table“><TABLE><TBODY><TR><TD colspan=„1“ rowspan=„1“>Protocol:</TD><TD colspan=„1“ rowspan=„1“>802.11 b/g/n</TD></TR><TR><TD colspan=„1“ rowspan=„1“>RF band:</TD><TD colspan=„1“ rowspan=„1“>2412 – 2472 МHz</TD></TR><TR><TD colspan=„1“ rowspan=„1“>Max. RF power:</TD><TD colspan=„1“ rowspan=„1“>< 20 dBm</TD></TR><TR><TD colspan=„1“ rowspan=„1“>Range:</TD><TD colspan=„1“ rowspan=„1“>Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)</TD></TR></TBODY></TABLE></FIGURE>
Bluetooth <FIGURE class=„table“><TABLE><TBODY><TR><TD colspan=„1“ rowspan=„1“>Protocol:</TD><TD colspan=„1“ rowspan=„1“>4.2</TD></TR><TR><TD colspan=„1“ rowspan=„1“>RF band:</TD><TD colspan=„1“ rowspan=„1“>2402 – 2480 MHz</TD></TR><TR><TD colspan=„1“ rowspan=„1“>Max. RF power:</TD><TD colspan=„1“ rowspan=„1“>< 4 dBm</TD></TR><TR><TD colspan=„1“ rowspan=„1“>Range:</TD><TD colspan=„1“ rowspan=„1“>Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)</TD></TR></TBODY></TABLE></FIGURE>
Microcontroller unit <FIGURE class=„table“><TABLE><TBODY><TR><TD colspan=„1“ rowspan=„1“>CPU:</TD><TD colspan=„1“ rowspan=„1“>ESP-Shelly-C38F</TD></TR><TR><TD colspan=„1“ rowspan=„1“>Flash:</TD><TD colspan=„1“ rowspan=„1“>8MB</TD></TR></TBODY></TABLE></FIGURE>
