Параметри и описание

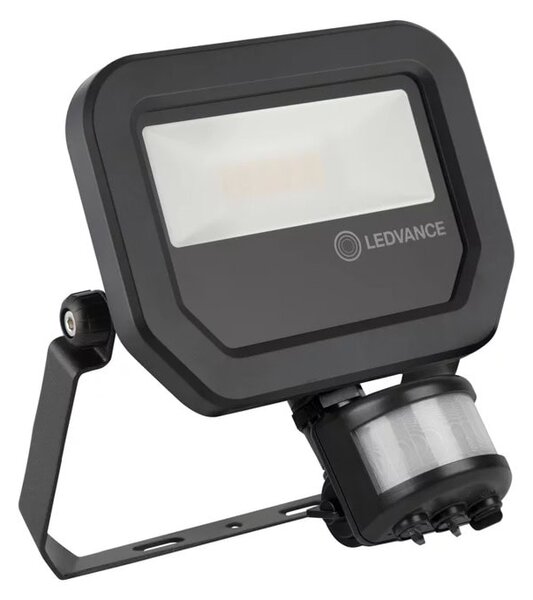

Product benefits
- Bright, robust and durable
- Demand optimized illumination due to flexible and programmable sensor
- Easy adjustment of sensor range, daylight detection and hold time
- Always-on override, activated via special mains switching pattern
- Safe and very uniform illumination, due to frosted and tempered glass diffuser
- No upper light output ratio (ULOR 0%) when mounted at 0° tilt
- Energy savings of up to 90 % compared to halogen lamp floodlights
Areas of application
- Replacement for floodlights with halogen lamps
- Outdoor use (IP65)
- Public areas
- Building facades
- Construction areas
- Gardens, balconies and other outdoor areas
Product features
- Flexible motion and daylight sensor
- Sensor with 350° pan and 180° tilt
- Reflector-based, symmetric light distribution with 100° x 100° beam angle
- Integrated wide voltage driver, suitable for 100 – 277 V AC
- Surge protection: up to 4 kV (L/N-PE), 2 kV (L-N)
- Mounting bracket with 30° angle and wide rotation area
- Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 × 1.0 mm² single wires
Specifications
Electrical data <FIGURE class=„table“><TABLE><TBODY><TR><TD>Nominal wattage</TD><TD>10.00 W</TD></TR><TR><TD>Nominal voltage</TD><TD>100…277 V</TD></TR><TR><TD>Mains frequency</TD><TD>50…60 Hz</TD></TR><TR><TD>Nominal current</TD><TD>48 mA</TD></TR><TR><TD>Inrush current</TD><TD>7.2 A</TD></TR><TR><TD>Inrush current time Th50</TD><TD>21 µs</TD></TR><TR><TD>Max. number of luminaires per miniature circuit breaker B16</TD><TD>185</TD></TR><TR><TD>Max. number of luminaires per miniature circuit breaker C10</TD><TD>135</TD></TR><TR><TD>Max. number of luminaires per miniature circuit breaker C16</TD><TD>216</TD></TR><TR><TD>Power factor λ</TD><TD>> 0.90</TD></TR><TR><TD>Total harmonic distortion</TD><TD>< 20 %</TD></TR><TR><TD>Protection class</TD><TD>I</TD></TR><TR><TD>Operating mode</TD><TD>Integrated LED driver</TD></TR></TBODY></TABLE></FIGURE> Photometrical data <FIGURE class=„table“><TABLE><TBODY><TR><TD>Luminous flux</TD><TD>1100 lm</TD></TR><TR><TD>Luminous efficacy</TD><TD>110 lm/W</TD></TR><TR><TD>Color temperature</TD><TD>3000 K</TD></TR><TR><TD>Light color (designation)</TD><TD>Warm White</TD></TR><TR><TD>Color rendering index Ra</TD><TD>≥80</TD></TR><TR><TD>Standard deviation of color matching</TD><TD>≤5 sdcm</TD></TR><TR><TD>Luminous intensity</TD><TD>-</TD></TR><TR><TD>Flickering metric (Pst LM)</TD><TD>-</TD></TR><TR><TD>Stroboscope effect metric (SVM)</TD><TD>-</TD></TR><TR><TD>Photobiological safety group acc. to EN62778</TD><TD>RG1</TD></TR><TR><TD>Photobiological safety group acc. to EN62471</TD><TD>RG1</TD></TR><TR><TD>Beam angle</TD><TD>100 ° x 100 °</TD></TR></TBODY></TABLE></FIGURE> Dimensions & Weight <FIGURE class=„table“><TABLE><TBODY><TR><TD>Length</TD><TD>159.00 mm</TD></TR><TR><TD>Height</TD><TD>53.00 mm</TD></TR><TR><TD>Width</TD><TD>131.00 mm</TD></TR><TR><TD>Product weight</TD><TD>440.00 g</TD></TR><TR><TD>Cable length</TD><TD>1000 mm</TD></TR></TBODY></TABLE></FIGURE> Materials & Colors <FIGURE class=„table“><TABLE><TBODY><TR><TD>Product color</TD><TD>Black</TD></TR><TR><TD>Housing color</TD><TD>Black</TD></TR><TR><TD>Body material</TD><TD>Aluminum</TD></TR><TR><TD>Light emitting surface material</TD><TD>Glass</TD></TR><TR><TD>Glow Wire Test according to IEC 60695–2–12</TD><TD>650 °C</TD></TR><TR><TD>Mercury content</TD><TD>0.0 mg</TD></TR></TBODY></TABLE></FIGURE> Application & Mounting <FIGURE class=„table“><TABLE><TBODY><TR><TD>Ambient temperature range</TD><TD>-30…+50 °C</TD></TR><TR><TD>Temperature range at storage</TD><TD>-40…+70 °C</TD></TR><TR><TD>Type of connection</TD><TD>Cable, 3-pole</TD></TR><TR><TD>Type of protection</TD><TD>IP65</TD></TR><TR><TD>Protection class IK (shock resistance)</TD><TD>IK07</TD></TR><TR><TD>Dimmable</TD><TD>No</TD></TR><TR><TD>Mounting type</TD><TD>Surface</TD></TR><TR><TD>Mounting location</TD><TD>Wall, Ceiling</TD></TR><TR><TD>Application environment</TD><TD>Outdoor</TD></TR><TR><TD>Adjustable</TD><TD>Yes</TD></TR><TR><TD>LED module replaceable</TD><TD>Not replaceable</TD></TR><TR><TD>With light source</TD><TD>Yes</TD></TR></TBODY></TABLE></FIGURE> Lifespan <FIGURE class=„table“><TABLE><TBODY><TR><TD>Lifespan L70/B50 at 25 °C</TD><TD>70000 h </TD></TR><TR><TD>Lifespan L80/B10 at 25 °C</TD><TD>55000 h </TD></TR><TR><TD>Lifespan L90/B10 at 25 °C</TD><TD>35000 h</TD></TR><TR><TD>Number of switching cycles</TD><TD>100000</TD></TR></TBODY></TABLE></FIGURE> Control gear <FIGURE class=„table“><TABLE><TBODY><TR><TD>Output current</TD><TD>220 mA</TD></TR><TR><TD>ECG – Output ripple current</TD><TD>< 50 %</TD></TR></TBODY></TABLE></FIGURE> Sensor <FIGURE class=„table“><TABLE><TBODY><TR><TD>Type of sensor</TD><TD>Motion, Light</TD></TR><TR><TD>Sensor technology</TD><TD>Passive infrared/Photocell</TD></TR><TR><TD>Sensor detection angle</TD><TD>40 °…160 °</TD></TR><TR><TD>Sensor controlled switching time</TD><TD>10 s…12 min</TD></TR><TR><TD>Detection range of motion sensor</TD><TD>2…12 m</TD></TR><TR><TD>Detection threshold of daylight sensor</TD><TD>10…2000 lx</TD></TR><TR><TD>Sensor IP rating</TD><TD>IP65</TD></TR></TBODY></TABLE></FIGURE> Certificates & Standards <FIGURE class=„table“><TABLE><TBODY><TR><TD>Standards</TD><TD>CE, CB, ENEC, EAC, RoHS, EPD</TD></TR></TBODY></TABLE></FIGURE>
