Параметри и описание
//Powerful Cooling //

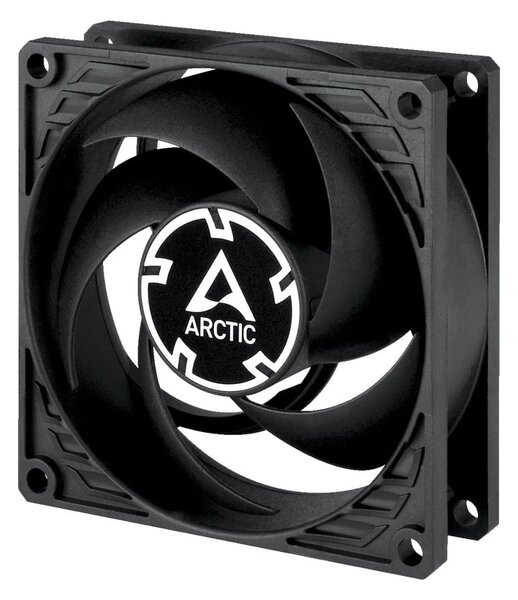

The P8 Max is a powerful fan with 500 to 5000 rpm.The fan delivers a static pressure of 5.3 mmH2O and generates an airflow of up to 40 cfm. It offers precise control of the fan speed via pulse width modulation (PWM) and is extremely efficient at 0.19 A. The P8 Max is ideal for 2U server racks, which often require a high airflow to effectively dissipate heat. In addition, it has a 0 dB mode for silent operation in IDLE.
//Extremely Wide Speed Range //
The P8 Max enables precise fan speed (500 to 5000 rpm) via pulse width modulation control, which can be adapted to the individual cooling requirements. The P8 Max enables silent operation when only a low airflow is required and provides a high performance level if needed.
Specifications
//Performance //
Fan Speed:
500–5000 rpm, (0 rpm under 5% PWM)
Airflow:
40 cfm | 67.96 m³/h
Static Pressure:
5.3 mmH2O
Noise Level:
0.6 Sone
Operating Ambient Temperature:
0—40 °C
MTTF:
500.000 h
//Fan //
Fan Frame:
Standard
Control Type:
Pulse Width Modulation — PWM
Connector:
4-Pin Connector
Fan Bearing:
Dual Ball Bearing
//Electric Characteristics //
Typical Voltage:
12 V DC
Starting Voltage:
3.2 V
Current | Voltage:
0.19 A | 12 V DC
Cable Length:
400 mm
//Size & Weight //
Length:
80 mm
Width:
80 mm
Height:
25 mm
