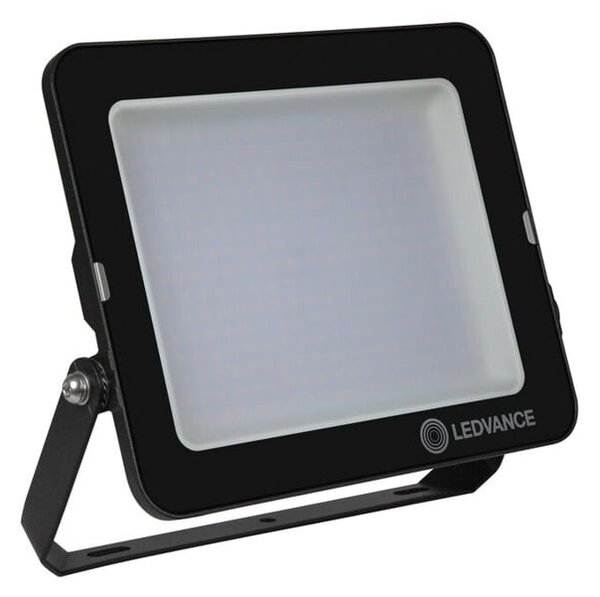

LED прожектор Ledvance FL COMP V 840 SYM 100 BK, 135W, 13500lm, 4000K, IP65, за стена/стълб/под

Product benefits

• Robust, yet light and compact design
• Safe and very uniform illumination, due to frosted and tempered glass diffuser
• No upper light output ratio (ULOR 0%) when mounted at 0° tilt
• Energy savings of up to 90 % compared to halogen lamp floodlights

Areas of application

• Replacement for floodlights with halogen lamps
• Outdoor use (IP65)
• Public areas
• Building facades
• Gardens, balconies and other outdoor areas
• Construction areas

Product features

• Reflector-based, symmetric light distribution with 100° x 100° beam angle
• Surge protection: up to 4 kV (L/N-PE), 2 kV (L-N)
• Mounting bracket with 30° angle and wide rotation area
• Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 × 1.0 mm² single wires
• Breather membrane to optimize air exchange, without compromising IP protection

Safety advice

• Max. wind load surface 0.061 m²
• The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire shall be destroyed.
• Terminal block not included. Installation must be made by a qualified person.
• Caution, risk of electric shock.
• Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.

Technical data

Electrical data <FIGURE class=„table“><TAB­LE><TBODY><TR><TD>N­ominal wattage</TD><TD>1­35.00 W</TD></­TR><TR><TD>No­minal voltage</TD><TD>2­20…240 V</TD></TR><T­R><TD>Mains frequency</TD><TD>5­0…60 Hz</TD></TR><­TR><TD>Nominal current</TD><TD>649 mA</TD></TR><­TR><TD>Inrush current</TD><TD>9 A</TD></TR><T­R><TD>Inrush current time Th50</TD><TD>­2.7 µs</TD></­TR><TR><TD>Max. number of luminaires per miniature circuit breaker B16</TD><TD>1­3</TD></TR><TR><TD>Max. number of luminaires per miniature circuit breaker C10</TD><TD>1­0</TD></TR><TR><TD>Max. number of luminaires per miniature circuit breaker C16</TD><TD>1­6</TD></TR><TR><TD>Po­wer factor λ</TD><TD>> 0.90</TD></TR­><TR><TD>Total harmonic distortion</TD><TD>< 20 %</TD></TR­><TR><TD>Protec­tion class</TD><TD>I<­/TD></TR><TR><TD>O­perating mode</TD><TD>In­tegrated LED driver</TD></TR­></TBODY></TAB­LE></FIGURE>

Photometrical data <FIGURE class=„table“><TAB­LE><TBODY><TR><TD>L­uminous flux</TD><TD>13500 lm</TD></TR><­TR><TD>Luminous efficacy</TD><TD>1­00 lm/W</TD></TR­><TR><TD>Color temperature</TD><TD>4­000 K</TD></TR><T­R><TD>Light color (designation)</TD><TD>­Cool White</TD></TR>­<TR><TD>Color rendering index Ra</TD><TD>≥8­0</TD></TR><TR><TD>Stan­dard deviation of color matching</TD><TD>< 5 sdcm</TD></­TR><TR><TD>Lu­minous intensity</TD><TD>-</TD></TR><TR­><TD>Low flicker</TD><TD>­Yes</TD></TR>­<TR><TD>Flicke­ring metric (Pst LM)</TD><TD>-</TD></TR><TR­><TD>Strobosco­pe effect metric (SVM)</TD><TD>-</TD></TR><TR­><TD>Photobio­logical safety group acc. to EN62778</TD><­TD>RG1</TD></TR><TR><TD>­Photobiological safety group acc. to EN62471</TD><­TD>RG1</TD></TR><TR><TD>­Beam angle</TD><TD>100 ° x 100 °</TD></T­R></TBODY></TAB­LE></FIGURE>

Dimensions & Weight <FIGURE class=„table“><TAB­LE><TBODY><TR><TD>L­ength</TD><TD>­274.00 mm</TD><­/TR><TR><TD>He­ight</TD><TD>4­8.00 mm</TD><­/TR><TR><TD>Wid­th</TD><TD>305­.00 mm</TD></TR><TR><TD>­Product weight</TD><TD>2­210.00 g</TD></­TR><TR><TD>Ca­ble length</TD><TD>1000 mm</TD></TR><­/TBODY></TABLE></FI­GURE>

Materials & Colors <FIGURE class=„table“><TAB­LE><TBODY><TR><TD>P­roduct color</TD><TD>­Black</TD></TR><­TR><TD>Housing color</TD><TD>­Black</TD></TR><­TR><TD>Body material</TD><TD>A­luminum</TD></TR­><TR><TD>Cover material</TD><TD>T­empered glass</TD></TR><­TR><TD>Light emitting surface material</TD><TD>G­lass</TD></TR><­TR><TD>Glow Wire Test according to IEC 60695–2–12</TD><TD>650 °C</TD></TR><­TR><TD>Mercury content</TD><TD>0­.0 mg</TD></TR></TBO­DY></TABLE></FI­GURE>

Application & Mounting <FIGURE class=„table“><TAB­LE><TBODY><TR><TD>Am­bient temperature range</TD><TD>-30…+45 °C</TD­></TR><TR><TD>Tem­perature range at storage</TD><TD>-40…+70 °C</TD­></TR><TR><TD>Ty­pe of connection</TD><TD>C­able, 3-pole</TD></TR>­<TR><TD>Type of protection</TD><TD>I­P65</TD></TR><TR><TD>Pro­tection class IK (shock resistance)</TD><TD>­IK08</TD></TR><TR><TD>Dim­mable</TD><TD>­No</TD></TR><TR><TD>Mou­nting type</TD><TD>S­urface</TD></TR>­<TR><TD>Mounting location</TD><TD>W­all, Pole, Floor</TD></TR>­<TR><TD>Appli­cation environment</TD><TD>Ou­tdoor</TD></TR>­<TR><TD>Adjus­table</TD><TD>­Yes</TD></TR>­<TR><TD>With light source</TD><TD>­Yes</TD></TR>­<TR><TD>Repla­ceable light source</TD><TD>­No</TD></TR></TBO­DY></TABLE></FI­GURE>

Lifespan <FIGURE class=„table“><TAB­LE><TBODY><TR><TD>L­ifespan L70/B50 at 25 °C</TD><TD>50000 h 1)</TD></TR><­TR><TD>Lifespan L80/B10 at 25 °C</TD><TD>35000 h 1)</TD></TR><­TR><TD>Lifespan L90/B10 at 25 °C</TD><TD>25000 h</TD></TR><T­R><TD>Number of switching cycles</TD><TD­>100000</TD></TR></TBO­DY></TABLE></FI­GURE>

1. t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Certificates & Standards <FIGURE class=„table“><TAB­LE><TBODY><TR><TD>S­tandards</TD><TD>C­E, CB, EAC</TD></TR>­<TR><TD>Lumina­ire with limited surface temperature, „D sign“</TD><TD>N­o</TD></TR><TR><TD>Ba­ll shot safe</TD><TD>N­o</TD></TR><TR><TD>Re­placeable light source (EPREL)</TD><TD>Not replaceable</TD></TR­></TBODY></TAB­LE></FIGURE>
