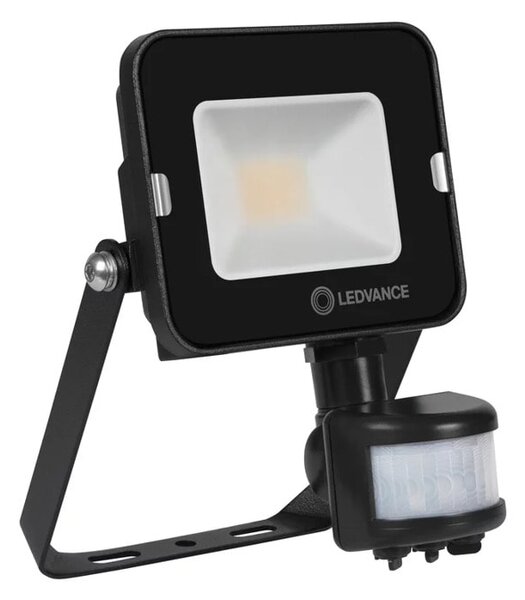

LED прожектор Ledvance, 10W, 1000lm, 4000K, IP65, за стена/стълб/под

Product benefits

• Robust, yet light and compact design
• Demand optimized illumination due to flexible and programmable sensor
• Easy adjustment of sensor range, daylight detection and hold time
• Always-on override, activated via special mains switching pattern
• Safe and very uniform illumination, due to frosted and tempered glass diffuser
• No upper light output ratio (ULOR 0%) when mounted at 0° tilt
• Energy savings of up to 90 % compared to halogen lamp floodlights

Areas of application

• Replacement for floodlights with halogen lamps
• Outdoor use (IP65)
• Public areas
• Building facades
• Gardens, balconies and other outdoor areas
• Construction areas

Product features

• Flexible motion and daylight sensor
• Sensor with 350° pan and 180° tilt
• Reflector-based, symmetric light distribution with 100° x 100° beam angle
• Mounting bracket with 30° angle and wide rotation area
• Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 × 1.0 mm² single wire

Technical data

Electrical data

<TABLE border=„2“>

<TBODY>

<TR>

<TD>Nominal wattage</TD>

<TD>10.00 W</TD>

</TR>

<TR>

<TD>Nominal voltage</TD>

<TD>220…240 V</TD>

</TR>

<TR>

<TD>Mains frequency</TD>

<TD>50…60 Hz</TD>

</TR>

<TR>

<TD>Nominal current</TD>

<TD>55 mA</TD>

</TR>

<TR>

<TD>Inrush current</TD>

<TD>6.3 A</TD>

</TR>

<TR>

<TD>Inrush current time T<SUB>h50</SU­B></TD>

<TD>2.3 µs</TD>

</TR>

<TR>

<TD>Max. number of luminaires per miniature circuit breaker B16</TD>

<TD>159</TD>

</TR>

<TR>

<TD>Max. number of luminaires per miniature circuit breaker C10</TD>

<TD>116</TD>

</TR>

<TR>

<TD>Max. number of luminaires per miniature circuit breaker C16</TD>

<TD>185</TD>

</TR>

<TR>

<TD>Power factor λ</TD>

<TD>> 0.80</TD>

</TR>

<TR>

<TD>Total harmonic distortion</TD>

<TD>< 20 %</TD>

</TR>

<TR>

<TD>Protection class</TD>

<TD>I</TD>

</TR>

<TR>

<TD>Operating mode</TD>

<TD>Integrated LED driver</TD>

</TR>

</TBODY>

</TABLE>

Photometrical data

<TABLE border=„2“>

<TBODY>

<TR>

<TD>Luminous flux</TD>

<TD>1000 lm</TD>

</TR>

<TR>

<TD>Luminous efficacy</TD>

<TD>100 lm/W</TD>

</TR>

<TR>

<TD>Color temperature</TD>

<TD>4000 K</TD>

</TR>

<TR>

<TD>Light color (designation)</TD>

<TD>Cool White</TD>

</TR>

<TR>

<TD>Color rendering index Ra</TD>

<TD>≥80</TD>

</TR>

<TR>

<TD>Standard deviation of color matching</TD>

<TD>< 5 sdcm</TD>

</TR>

<TR>

<TD>Luminous intensity</TD>

<TD>-</TD>

</TR>

<TR>

<TD>Low flicker</TD>

<TD>Yes</TD>

</TR>

<TR>

<TD>Flickering metric (Pst LM)</TD>

<TD>-</TD>

</TR>

<TR>

<TD>Stroboscope effect metric (SVM)</TD>

<TD>-</TD>

</TR>

<TR>

<TD>Photobiological safety group acc. to EN62778</TD>

<TD>RG1</TD>

</TR>

<TR>

<TD>Photobiological safety group acc. to EN62471</TD>

<TD>RG1</TD>

</TR>

<TR>

<TD>Beam angle</TD>

<TD>100 ° x 100 °</TD>

</TR>

</TBODY>

</TABLE>

Dimensions

<TABLE border=„2“>

<TBODY>

<TR>

<TD>Length</TD>

<TD>153.00 mm</TD>

</TR>

<TR>

<TD>Height</TD>

<TD>53.00 mm</TD>

</TR>

<TR>

<TD>Width</TD>

<TD>109.00 mm</TD>

</TR>

<TR>

<TD>Cable length</TD>

<TD>1000 mm</TD>

</TR>

</TBODY>

</TABLE>

Materials & Colors

<TABLE border=„2“>

<TBODY>

<TR>

<TD>Product color</TD>

<TD>Black</TD>

</TR>

<TR>

<TD>Housing color</TD>

<TD>Black</TD>

</TR>

<TR>

<TD>Body material</TD>

<TD>Aluminum</TD>

</TR>

<TR>

<TD>Cover material</TD>

<TD>Tempered glass</TD>

</TR>

<TR>

<TD>Light emitting surface material</TD>

<TD>Glass</TD>

</TR>

<TR>

<TD>Glow Wire Test according to IEC 60695–2–12</TD>

<TD>650 °C</TD>

</TR>

<TR>

<TD>Mercury content</TD>

<TD>0.0 mg</TD>

</TR>

</TBODY>

</TABLE>

Application & Mounting

<TABLE border=„2“>

<TBODY>

<TR>

<TD>Ambient temperature range</TD>

<TD>-30…+45 °C</TD>

</TR>

<TR>

<TD>Temperature range at storage</TD>

<TD>-40…+70 °C</TD>

</TR>

<TR>

<TD>Type of connection</TD>

<TD>Cable, 3-pole</TD>

</TR>

<TR>

<TD>Type of protection</TD>

<TD>IP65</TD>

</TR>

<TR>

<TD>Protection class IK (shock resistance)</TD>

<TD>IK06</TD>

</TR>

<TR>

<TD>Dimmable</TD>

<TD>No</TD>

</TR>

<TR>

<TD>Mounting type</TD>

<TD>Surface</TD>

</TR>

<TR>

<TD>Mounting location</TD>

<TD>Wall, Pole, Floor</TD>

</TR>

<TR>

<TD>Application environment</TD>

<TD>Outdoor</TD>

</TR>

<TR>

<TD>Adjustable</TD>

<TD>Yes</TD>

</TR>

<TR>

<TD>LED module replaceable</TD>

<TD>Not replaceable</TD>

</TR>

<TR>

<TD>With light source</TD>

<TD>Yes</TD>

</TR>

</TBODY>

</TABLE>

Lifespan

<TABLE border=„2“>

<TBODY>

<TR>

<TD>Lifespan L70/B50 at 25 °C</TD>

<TD>50000 h</TD>

</TR>

<TR>

<TD>Lifespan L80/B10 at 25 °C</TD>

<TD>35000 h</TD>

</TR>

<TR>

<TD>Lifespan L90/B10 at 25 °C</TD>

<TD>25000 h</TD>

</TR>

<TR>

<TD>Number of switching cycles</TD>

<TD>100000</TD>

</TR>

</TBODY>

</TABLE>

Sensor

<TABLE border=„2“>

<TBODY>

<TR>

<TD>Type of sensor</TD>

<TD>Motion, Light</TD>

</TR>

<TR>

<TD>Sensor technology</TD>

<TD>Passive infrared/Photo­cell</TD>

</TR>

<TR>

<TD>Sensor detection angle</TD>

<TD>40 °…160 °</TD>

</TR>

<TR>

<TD>Sensor controlled switching time</TD>

<TD>10 s…12 min</TD>

</TR>

<TR>

<TD>Detection range of motion sensor</TD>

<TD>2…12 m</TD>

</TR>

<TR>

<TD>Detection threshold of daylight sensor</TD>

<TD>10…2000 lx</TD>

</TR>

<TR>

<TD>Sensor IP rating</TD>

<TD>IP65</TD>

</TR>

<TR>

<TD>Sensor IK rating</TD>

<TD>IK05</TD>

</TR>

</TBODY>

</TABLE>

Certificates & Standards

<TABLE border=„2“>

<TBODY>

<TR>

<TD>Standards</TD>

<TD>CE, CB, EAC</TD>

</TR>

<TR>

<TD>Luminaire with limited surface temperature, „D sign“</TD>

<TD>No</TD>

</TR>

<TR>

<TD>Ball shot safe</TD>

<TD>No</TD>

</TR>

</TBODY>

</TABLE>
