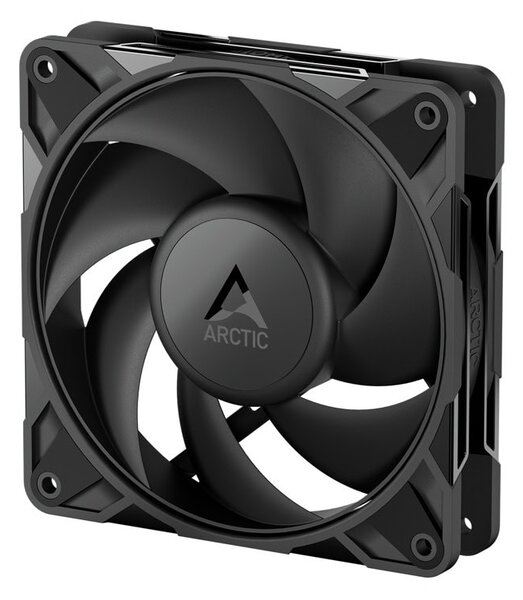

Вентилатор 120mm, Arctic P12 Pro Reverse, 4-pin, 3000 rpm, черен
Kупете от:
Сходни продукти (6)
Параметри и описание
//Arctic P12 Pro Reverse //
<FIGURE class=„image“></FIGURE> Optimized Airflow Design
The trumpet-shaped intake and teardrop-shaped spokes direct the airflow with reduced flow losses.
This reduces air resistance, minimising turbulence and aerodynamic noise.
<FIGURE class=„table“><TABLE><TBODY><TR><TD><FIGURE class=„image“></FIGURE></TD><TD><FIGURE class=„image“></FIGURE></TD><TD><FIGURE class=„image“></FIGURE></TD></TR><TR><TD> SOTA Microcontroller
Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity. </TD><TD> More Power – Less Noise
An automated measuring and balancing process ensures smooth performance by applying the balancing compound with pinpoint accuracy. </TD><TD> Minimum Gap Dimensions for Maximum Efficiency
Enables higher static pressure and maximum airflow efficiency. </TD></TR></TBODY></TABLE></FIGURE>
<FIGURE class=„table“><TABLE><TBODY><TR><TD><FIGURE class=„image“></FIGURE></TD><TD><FIGURE class=„image“></FIGURE></TD></TR><TR><TD> PST – Easy Cable Management and Synchronized PWM Control
Thanks to the additional PWM connector, multiple fans can be daisy-chained and controlled simultaneously through a single header. </TD><TD> Optimized FDB Bearing-Shaft Design
A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations. </TD></TR></TBODY></TABLE></FIGURE>
Specifications
Operating Ambient Temperature
0–40 °C
Dimensions
120 (L) x 120 (W) x 27 (H) mm
Net Weight
172 g
Fan Specifications
Fan Speed
500–3000 rpm, PWM controlled
0 rpm below 5 % PWM
Airflow
73 cfm | 124 m³/h
Static Pressure
4.5 mmH2O
Fan Bearing
Fluid Dynamic Bearing
Typical Voltage
12 V DC
Start Up Voltage
3.5 V DC
Current
0.4 A
Cable Length
400 mm + 80 mm Daisy-Chain Cable
Connector
4-Pin Fan Plug + 4-Pin Socket
